FEATURES:
Smart charger function for 1KVA~5KVA (automatic recognition of proper charging current for battery)
Pure sine wave inverter
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Perfect protection: low voltage protection, high voltage protection, overheat protection, short-circuit protection, overload protection, alarm alert
PERFORMANCE CHARACTERISTIC:
CPU Technology control
High charging current: up to 50 Amp.
Intelligent LED/LCD display
Intelligent battery management for maximum battery life
Automatically switch between the city power and inverter mode
Transfer time is below 4 ms
220V/110V AC 50/60Hz is optional
It can work with the generator
Intelligent fan control mode.
PARAMETERS:
| SC-V Pure Sine Wave Inverter |
| Series | 3KVA | 4KVA | 5KVA |
| Rated Output Power | 2400W | 3200W | 4000W |
| Battery Voltage (DC) | 24V/48V (Optional) |
| General Parameter |
Working Mode
(Setting) | 1 | Utility first (AC first) battery standby mode |
| 2 | Sleep mode,no utility,load's power higher than 5% of inverter
rated output power,it will start to work automatically |
| 3 | Battery first (DC first) utility standby UPS mode |
| AC Input | Voltage | 220V ± 35% or 110V ± 35% (Optional) |
| Frequency | 50Hz ± 3% or 60Hz ± 3% (Optional) |
| AC Output | Voltage | 220V ± 3% or 230V ± 3% or 110V ± 3% (Optional) |
| Frequency | 50Hz ± 0.5 or 60Hz ± 0.5 (Optional) |
| Battery Charge | AC Charge Current | 1 - 50A adjustable |
| Display Information | Input voltage, output voltage, output frequency, battery
capacity, load condition, status information |
| Overload Protection | >120% 1min, >130% 10s |
Power
Consumption | Sleep Mode | 1 - 6W |
| Normal Mode | <1A |
| Inversion Efficiency | 85% - 92% |
| Transfer Time | <4ms (AC to DC / DC to AC) |
| Protection | Overload, Short-circuit, High-voltage input, Low-voltage input, Overheat |
| Size: W*D*H (mm) | 458*210*216 |
| Net Weight (kgs) | 15 | 17 | 20 |
| The specification is only for reference. Subject to change without prior notice. |

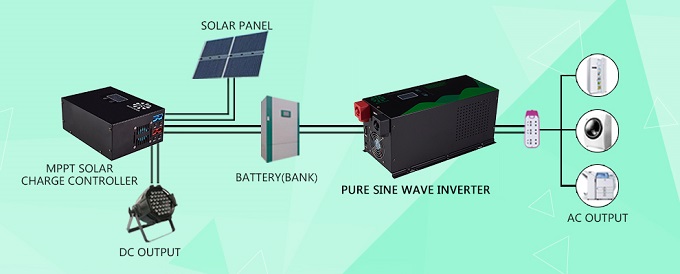

CONNECTION DIAGRAM:
